BMW
models after 2000

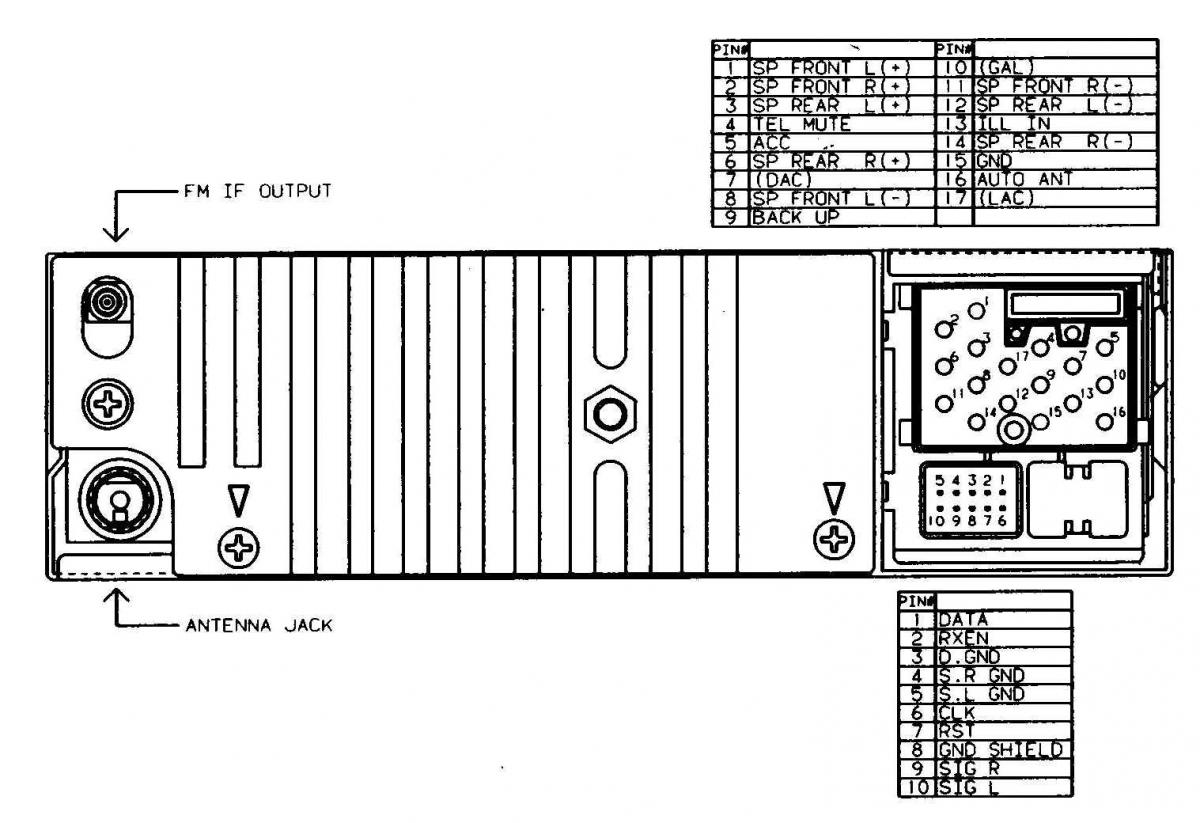

| pin | connector main | connector A | connector B |
| 1 | Speaker FR+ | line out L | tape in L+ |
| 2 | Speaker RR+ | cd-changer line in gnd | tape in L- |
| 3 | Speaker RL+ | line out GND | AUX L |
| 4 | Speaker FL+ | vcr line in R+ | AUX R |
| 5 | Speaker FR- | vcr line in L+ | navi/tv in + |
| 6 | Speaker RR- | vcr line in gnd | telefon + |
| 7 | Speaker RL- | line out R | tape in R+ |
| 8 | Speaker FL- | cd changer line in L+ | tape in R- |
| 9 | I-BUS | cd changer line in R+ | navi bus |
| 10 | tel mute | tv line in R+ | AUX GND |
| 11 | tel in | tv line in L+ | navi/tv in - |
| 12 | gnd | tv line in gnd | telefon - |
| 13 | amplifier remote | x | x |
| 14 | backlight | x | x |
| 15 | +12V | x | x |
| 16 | +12V ACC | x | x |
BMW
models after 2004 , the radio module E60/E61 M- ASK and CCC
| pin | connector main | connector A | connector B |
| 1 | Speaker FR+ | mic+ | fan+ |
| 2 | Speaker RR+ | gnd | aux L |
| 3 | Speaker RL+ | R | zbl+ |
| 4 | Speaker FL+ | G/CVBS | zbr+ |
| 5 | Speaker FR- | B | fan- |
| 6 | Speaker RR- | mic- | tel+ |
| 7 | Speaker RL- | - | aux R |
| 8 | Speaker FL- | - | aux gnd |
| 9 | CAN L | - | zbr- |
| 10 | tel mute | - | zbl- |
| 11 | CAN H | - | diag |
| 12 | masa | dfahl | tel- |
| 13 | radio on | x | x |
| 14 | backlight | x | x |
| 15 | +12V | x | x |
| 16 | - | x | x |
B connector for connecting the media changer.
In addition, a dual optical interface for communication with the MOST bus (amp, changer, additional audio components).
There is also a connector with ten contacts.
| pin | signal |
| 1 | rx in 1- |
| 2 | rx in 1+ |
| 3 | masa |
| 4 | rx in2- |
| 5 | rx in2+ |
| 6 | rx in0-/txck-(T) |
| 7 | rx in0+/txck+(T) |
| 8 | - |
| 9 | tx ck-/rxin0+(T) |
| 10 | tx ck+/rxin0-(T) |

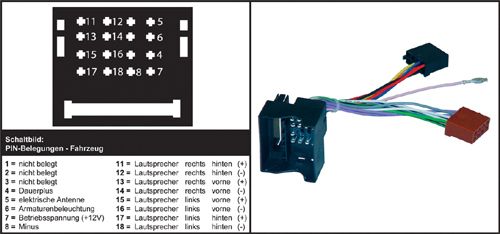

BMW 5
BMW X5
| Car radio | Model autoradio | Manufacturer | MCU | EEPROM | IC Amplifier |
| BMW | ANTI THEFT | ALPINE | 95211F02 3B5Z0A62F | ||
| BMW | AUTOTUNER | BECKER | |||
| BMW | BAVARIA C BUSINESS | BECKER | PCF80C31 | BAW658049 24C02 | TDA1554Q |
| BMW | BAVARIA C BUSINESS RDS KE-92 ZBM | PIONEER | PD4299B7 | P2100 | 2xTA7280P |
| BMW | BAVARIA C ELECTRONIC | BECKER | BE-G728-3 ITT , BE-G728-4 ITT | BAW574252 | |
| BMW | BAVARIA C EXCLUSIVE | BECKER | BAW574252 | ||
| BMW | BAVARIA C EXCLUSIVE | BECKER | SAB80C31A-12-P | GI8752 | |
| BMW | BAVARIA C II BP9455 | BLAUPUNKT | D7514G 466 | SDE2506 | 2xTDA2005 |
| BMW | BAVARIA C III BP1830 | BLAUPUNKT | 47C446AF1167 | 93C14 | 2xTDA2005 |
| BMW | BAVARIA C PROFESSIONAL | BECKER | PCF80C552 | BAW574252 | |
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | PCF80C552-4(8051) | 85C82 | |
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | 24C04 | ||
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | PCD8572 | ||
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | 24LC02 | ||
| BMW | BAVARIA C RDS BP1836 | BLAUPUNKT | MC68HC05B8 (8925900979) | MCU | |
| BMW | BAVARIA C RDS BP1836 | BLAUPUNKT | XC400803CFN (8925900337) | MCU | |
| BMW | BAVARIA C REV. II BP9475 | BLAUPUNKT | D7514G 465 | SDE2506 | 2xTDA2005 |
| BMW | BAVARIA C REV. III BP1835 | BLAUPUNKT | 47C446AF1104 | 93C46 | |
| BMW | BAVARIA C REV.RDS BP1836 | BLAUPUNKT | ZC400803CFN MC68HC05B6 (8925900337) | MCU | |
| BMW | BAVARIA C REV.RDS BP1838 | BLAUPUNKT | ZC400803CFN MC68HC05B6 (8925900337) | MCU | |
| BMW | BAVARIA C22 RDS BP3836 | BLAUPUNKT | XC86515CFN MC68HC05B16 (8925901452) | MCU | 2xTDA2005 |
| BMW | BAVARIA ELEC.CD BP8960 | BLAUPUNKT | ZC98386CFN MC68HC11E9 (8925900231) | MCU | 2xTDA1510A |
| BMW | BAVARIA ELEC.CD II | BLAUPUNKT | ZC403201CFN ( ) | MCU | |
| BMW | BAVARIA ELEC.CD II BP9960 | BLAUPUNKT | D7514G 490 | 93C46 + 93C46 | |
| BMW | BAVARIA REVERSE | BLAUPUNKT | ST6154Q8G/LB | 93LC46 | |
| BMW | BUSINESS CD43 BP0273 | BLAUPUNKT | (8925904674) | 95160 smd | |
| BMW | BUSINESS CD BP8272 | BLAUPUNKT | TI (8925901785) | 25C160N | |
| BMW | BUSINESS CD BP9272 | BLAUPUNKT | 25C160N | ||
| BMW | BUSINESS CD BP9273 | BLAUPUNKT | H11-96JR3YW TI (8925904431) | 25C160N | |
| BMW | BUSINESS CD RDS BP3850 | BLAUPUNKT | ZC426038CFN MC68HC05B16 (8925901565) | MCU | |
| BMW | BUSINESS CD23 BP6270 | BLAUPUNKT | ZC426186CFN MC68HC05B16 (8925904020) | MCU | |
| BMW | BUSINESS RDS wide | BECKER | 24C02 smd | TDA8569Q | |
| BMW | BUSINESS RDS DC703/60 | PHILIPS | ST10F168-Q6 | 24C64 | |
| BMW | BUSINESS RDS DC705/23 | PHILIPS | 24C64 | ||
| BMW | BUSINESS RDS DC705/32B | PHILIPS | 24C64 | ||
| BMW | BUSINESS RDS DC785/23 | PHILIPS | P83CE558 EFB 006 lub 024 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC785/24E | PHILIPS | 24C16 | ||
| BMW | BUSINESS RDS DC785/33 | PHILIPS | P83CE558 EFB 024 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC786/23 wide | PHILIPS | P83CE558EFB062 + P83CE559EFB021 | 24C16 | 2xTDA7375 |
| BMW | BUSINESS RDS DC786/23B wide | PHILIPS | P83CE558EFB024 (RC4-DC485) | 24C16 | |
| BMW | BUSINESS RDS DC795/23B | PHILIPS | P83CE558 EFB 006 or 026 lub 030 | 24C16 | |
| BMW | BUSINESS RDS DC806/23 | PHILIPS | 24C64 | ||
| BMW | BUSINESS RDS MID | BECKER | 24C02 | ||
| BMW | C33 DIN US | ALPINE | HD6473834F | X24C01 smd | |
| BMW | CD23 | BLAUPUNKT | MC68HC05B6 (8925901014) | MCU | |
| BMW | CD53 E46 | ALPINE | |||
| BMW | CD53 R50 | ALPINE | SAF-C161C132F | 24C32 | |
| BMW | CD53 R50 | ALPINE | H85/263 64F2633F25 | 24C32W6 | |
| BMW | CD54 E46 | BECKER | SAF-C161C132F | ||
| BMW | CD-READY CM5901 | ALPINE | 51T25160W01 542 | ||
| BMW | CD-READY CM5903L | ALPINE | 51T25160W03 | ||
| BMW | CD-READY CM5905 | ALPINE | 51T68620F01 | ||
| BMW | CD-READY CM5907 | ALPINE | 51T73216F03 | ||
| BMW | CD-READY CM5908J | ALPINE | 51T15240W02 | ||
| BMW | KE-81 ZBM | PIONEER | PD4081D | PDH001 | 2xHA13001 |
| BMW | KE-82 ZBM | PIONEER | |||
| BMW | KE-83 ZBM | PIONEER | PD4157B | PDH001 | |
| BMW | KE-91 ZBM | PIONEER | PD4216C | PDH001 | |
| BMW | KE-93 ZBM | PIONEER | PD4407D | P2100R | |
| BMW | MONITOR | ||||
| BMW | MULTI-INFO RADIO 22DN700/23E | PHILIPS | SAF-C167CR-LM GA | ST28C64 | HA13158 |
| BMW | NAVIGATION | BECKER | |||
| BMW | NAVIGATION SYSTEM 22 SY405 232 33T | PHILIPS | |||
| BMW | PN-9203 bike | CLARION | 051-0794-10 | ||
| BMW | PROFESIONAL RDS C24 | BECKER | |||
| BMW | PROFESIONAL RDS C54 E46 | BECKER | SAFC161C132F | 24C64 smd | NEMA |
| BMW | PU-9263 bike | CLARION | |||
| BMW | REVERSE 22DC595/23F | PHILIPS | P83CE560 EFB 041 | 24C166 smd | |
| BMW | REVERSE BP3835 | BLAUPUNKT | 47C446AF-P827 | 93C46 | |
| BMW | REVERSE BP3838 | BLAUPUNKT | MC68HC05B6 (8925901593) | MCU | |
| BMW | REVERSE RDS | BECKER | |||
| BMW | REVERSE RDS | BECKER | |||
| BMW | REVERSE RDS BP3836 | BLAUPUNKT | ZC86534CFN MC68HC05B16 (8925901452) | MCU | 2xTDA2005 |
| BMW | REVERSE RDS BP3836 | BLAUPUNKT | XC86515CFN MC68HC05B16 (8925901009) | MCU | |
| BMW | REVERSE RDS BP4836 | BLAUPUNKT | ZC86534CFN MC68HC05B16 (8925901452) | MCU | |
| BMW | REVERSE RDS BP4836 | BLAUPUNKT | ZC86534CFN MC68HC05B16 (8925901452) | MCU | |
| BMW | REVERSE RDS D BP6262 | BLAUPUNKT | ZC99308CFN MC68HC05B16 (8925901911) SEC | MCU | |
| BMW | REVERSE RDS D BP6262 | BLAUPUNKT | ZC99308CFN MC68HC05B16 (8925901911) SEC | MCU | |
| BMW | BP4643 | BLAUPUNKT | (8925902529) | MCU | |
| BMW | REVERSE RDS BP6260 | BLAUPUNKT | MC68HC705B16 | MCU | |
| BMW | ALPINE | 95211F02 3B5Z0A62F | MCU |
| BMW | BAVARIA C BUSINESS | BECKER | PCF80C31 | BAW658049 or SDA2526 or SDE2526 | TDA1554Q |
| BMW | BAVARIA C BUSINESS RDS KE-92ZBM | PIONEER | PD4299B | P2100R | NO (TA7280P x 2) |
| BMW | BAVARIA C ELECTRONIC | BECKER | ITT BE-G728-3 or -4 | BAW574252 | TDA7255 x 2 |
| BMW | BAVARIA C EXCLUSIV | BECKER | BAW574252 | ||
| BMW | BAVARIA C EXCLUSIV | BECKER | SAB80C31A-12-P | GI8752 | TDA7255 x 2 |
| BMW | BAVARIA C PROFESSIONAL | BECKER | PCF80C552 | BAW574252 | |
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | PCF80C552-4(8051) | 85C82 | |
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | 24C04 | ||
| BMW | BAVARIA C PROFESSIONAL RDS | BECKER | BAW574252 | ||
| BMW | BAVARIA C RDS BP1836 | BLAUPUNKT | MC68HC05B8 (8925900979) | ||
| BMW | BAVARIA C22 RDS BP3836 | BLAUPUNKT | MC68HC05B16 (8925901452) | TDA2005 x 2 | |
| BMW | BAVARIA C II BP9455 | BLAUPUNKT | D7514G466 | SDE2506 | TDA2005 x 2 |
| BMW | BAVARIA C III BP1830 | BLAUPUNKT | 47C446AF1167 (8925900384) | 93C14 | TDA2005 x 2 |
| BMW | BAVARIA C REV. II BP9475 | BLAUPUNKT | D7514G465 | SDE2506 | TDA2005 x 2 |
| BMW | BAVARIA C REV. III BP1835 | BLAUPUNKT | 47C446AF1104 | 93C46 | TDA2005 x 2 |
| BMW | BAVARIA C REV.RDS BP1836 | BLAUPUNKT | MC68HC05B8 (ZC400803CFN 8925900337) | ||
| BMW | BAVARIA C REV.RDS BP1838 | BLAUPUNKT | MC68HC05B6 (8925900337) | ||
| BMW | BAVARIA ELECTRONIC | BECKER | ITT BE-G725-1 | NO | TDA7255 x 2 |
| BMW | BAVARIA ELEC.CD BP8960 | BLAUPUNKT | MC68HC11A8 (8925900231) | NO (TDA1510A x 2) | |
| BMW | BAVARIA ELEC.CD II BP9960 | BLAUPUNKT | D7514G490 | 93C46 smd x 2 | L2750 x 2 |
| BMW | BAVARIA REVERSE | BLAUPUNKT | ST6154Q8G/LB | 93LC46 | |
| BMW | BUSINESS 22DC707/23E wide | PHILIPS | ST10F168-Q6 (311230055684) | 24C64 smd | TDA7385 |
| BMW | BUSINESS 22DC795/23B wide | PHILIPS | P83CE560EFB030 | 24C16 | |
| BMW | BUSINESS 22DC795/23F wide | PHILIPS | P83CE560EFB042 | 24C16 | TDA7375 x 2 |
| BMW | BUSINESS C43 OCEANIA | ALPINE | D78P058FGC | 24C01 smd | |
| BMW | BUSINESS C43 US DIN | ALPINE | 51T85101W01 | 24C08 smd | |
| BMW | BUSINESS C52 E39 wide | BECKER | SAFC161CI32F | 24LC08 smd | HYBRID |
| BMW | BUSINESS C53 E38 | BECKER | |||
| BMW | BUSINESS C53 E39 wide | BECKER | |||
| BMW | BUSINESS CD BMWRCD101-02 | VDO | ST10F269-Q3 | 24C64 smd | TDA7385 |
| BMW | BUSINESS CD BMWRCD105-04 | PHILIPS | ST10F269-Q3 | 24C64 smd | |
| BMW | BUSINESS CD BMWRCD108-03 | VDO | 24C64 smd | ||
| BMW | BUSINESS CD BMWRCD108-05 | VDO | ST10F269-Q3 | 24C64 smd | |
| BMW | BUSINESS CD CD43 BP0273 DIN | BLAUPUNKT | -8,926E+09 | 95160 smd | |
| BMW | BUSINESS CD CD43 BP0273 wide | BLAUPUNKT | TMS370C16 (H11-07ADJNW 8925904674) | 25160 smd | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP0273 DIN | BLAUPUNKT | TMS370C16 (8609501212) | 95160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP0273 DIN | BLAUPUNKT | TMS370C16 (F11-24A4TYW 8925904674) | 95160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP0273 wide | BLAUPUNKT | TMS370C16 (8609501212) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP0273 wide external display | BLAUPUNKT | TMS370C16 (8609501212) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP8272 DIN | BLAUPUNKT | TMS370C16 (HC-89A880W 8925901785) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP8272 wide | BLAUPUNKT | TMS370C16 (HC-89A880W 8925901785) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9272 DIN | BLAUPUNKT | TMS370C16 (8609501210) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9272 wide | BLAUPUNKT | TMS370C16 (8609501210) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9272 wide external display | BLAUPUNKT | TMS370C16 (8609501210 or 8925904431) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9273 DIN | BLAUPUNKT | TMS370C16 (8609501211) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9273 wide | BLAUPUNKT | H11-96JR3YW (8925904431) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD43 BP9273 wide external display | BLAUPUNKT | TMS370C16 (8609501211) | 25C160 smd + M92256 smd x 2 | TDA7376B x 2 |
| BMW | BUSINESS CD CD53 E46 wide | ALPINE | HD64F2633F25 | 24C32 smd | |
| BMW | BUSINESS CD CD53 E46 wide | ALPINE | SAFC161CI32F-16F | 24C32 smd | |
| BMW | BUSINESS CD CD53 E39/53 | ALPINE | SAFC161CI32F-16F | 24C32 smd | TDA7454 |
| BMW | BUSINESS CD RDS CD23 BP3850 | BLAUPUNKT | MC68HC05B8 (8925901565) | TDA7350 x 2 | |
| BMW | BUSINESS CD RDS CD23 BP3850 | BLAUPUNKT | MC68HC05B6 (8925901014) | TDA7350 x 2 | |
| BMW | BUSINESS CD RDS CD23 BP6270 | BLAUPUNKT | MC68HC05B16 (8925904020) | TDA7350 x 2 | |
| BMW | BUSINESS CD RDS 22DC986/23B | PHILIPS | P83CE559EFB/025 + P83CE558EFB/086 | 24C16 | TDA7375 x 2 |
| BMW | BUSINESS CD RDS 22DC806 | PHILIPS | ST10F269-03 | 24C64 smd | |
| BMW | BUSINESS MD MD53 E46 wide | ALPINE | SAFC161CI32F-16F | 24C32 smd | |
| BMW | BUSINESS RDS BP3838 | BLAUPUNKT | MC68HC05B8 (ZC426021CFN 8925901529) | TDA7350 x 2 | |
| BMW | BUSINESS RDS wide | BECKER | 24LC02 smd | TDA8569Q | |
| BMW | BUSINESS RDS MID wide | BECKER | 24LC02 smd | ||
| BMW | BUSINESS RDS C23 MID BP7266 | BLAUPUNKT | MC68HC05B8 (ZC426185CFN 8925904019) | ||
| BMW | BUSINESS RDS C23 ZIS BP3838 | BLAUPUNKT | MC68HC05B8 (8925901593) | NO | |
| BMW | BUSINESS RDS DC703/60 | PHILIPS | ST10F168-Q6 | 24C64 | |
| BMW | BUSINESS RDS DC703 wide | PHILIPS | ST10F168-Q6 | 24C64 | |
| BMW | BUSINESS RDS DC705/23 wide | PHILIPS | 24C64 | ||
| BMW | BUSINESS RDS DC705/32B | PHILIPS | ST10F168 | 24C64 | |
| BMW | BUSINESS RDS DC785/23 | PHILIPS | P83CE558EFB006 RC1-DC785 or P83CE558EFB024 358420 RC4-DC785 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC785/23E | PHILIPS | P83CE558EFB006 RC1-DC785 or P83CE558EFB024 358420 RC4-DC785 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC785/23F | PHILIPS | P83CE558EFB079 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC785/23F | PHILIPS | P83CE558EFB102 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS DC785/33 | PHILIPS | P83CE558EFB024 | 24C16 | TDA7375 |
| BMW | BUSINESS RDS 22DC786/23 wide | PHILIPS | P83CE558EFB062 + P83CE559EFB021 | 24C16 | TDA7375 x 2 |
| BMW | BUSINESS RDS 22DC786/23B wide | PHILIPS | P83CE558EFB024 (RC4-DC485) | 24C16 | |
| BMW | C33 US | ALPINE | 51T75353W03 + HD6473834FW08 | X24C01 smd | |
| BMW | CD53 R50 | ALPINE | SAFC161CI32F | 24C32 | |
| BMW | CD53 R50 | ALPINE | |||
| BMW | CD-READY CM5901 | ALPINE | 51T25160W01 542 or D78P224GJ W02 | LA4445 x 2 | |
| BMW | CD-READY CM5903 | ALPINE | 51T25160W03 | ||
| BMW | CD-READY CM5903LC | ALPINE | 51T55214W01 | ||
| BMW | CD-READY CM5905 | ALPINE | 51T71686F02 or 51T71686F01 | MB3731 x 2 | |
| BMW | CD-READY CM5907 | ALPINE | 51T73216F03 | ||
| BMW | CD-READY CM5908 | ALPINE | 51T15240W02 | LA4445 x 2 | |
| BMW | E36/E32 XR-5B127 | SONY | D78238GC204 | ||
| BMW | ALPINE | 95211F02 3B5Z0A62F | |||
| BMW | ALPINE | 51T65450W01 597 | TDA1554Q | ||
| BMW | ALPINE | 51T55214W01 586 | |||
| BMW | KE-81ZBM | PIONEER | PD4081D | PDH001 | HA13001 x 2 |
| BMW | KE-82ZBM | PIONEER | PD4157A (75108202) | PDH001 | TA7280P |
| BMW | KE-83ZBM | PIONEER | PD4157B | PDH001 | |
| BMW | KE-91ZBM | PIONEER | PD4216C | PDH001 | |
| BMW | KE-91ZBM | PIONEER | PD4216C | PDH004 | |
| BMW | KE-93ZBM | PIONEER | PD4407D | P2100R | |
| BMW | MONITOR wide | ALPINE | D78P054GC | 24C04 | NO |
| BMW | MULTI-INFO RADIO 22DN700/23E | PHILIPS | SAF-C167CR-LM | 28C64 | HA13158 |
| BMW | NAVIGATION SYSTEM 22DC709/23B | PHILIPS | SAF-C167CR-LM | 28C64A | |
| BMW | NAVIGATION SYSTEM 22SY405/232 wide | PHILIPS | P87CE560EFB/01 + P83CE558REFB145 | 24C08 smd | NO |
| BMW | NAVIGATION SYSTEM 22SY411/23L | PHILIPS | 24C08 smd | ||
| BMW | NAVIGATION SYSTEM 22SY421/23L | PHILIPS | P83CE558EFB/078 or P83CE558REFB154 | 24C08 smd | NO |
| BMW | PROFESSIONAL | BECKER | |||
| BMW | PROFESSIONAL CD MP3 | VDO | ST10F276-SEG x 2 | 24C64 smd + 24LC128 smd | TDA7454 |
| BMW | PROFESSIONAL BM54 | BECKER | 24C64 smd | HYBRID | |
| BMW | PROFESSIONAL RDS C24 | BECKER | |||
| BMW | PROFESSIONAL RDS CD54 E39 wide external display | BECKER | SAFC161CI32F | 24C64 smd | NO |
| BMW | PROFESSIONAL RDS CD54 E46 | BECKER | SAFC161CI32F | 24C64 smd | NO |
| BMW | PROFESSIONAL RDS CD54 E46 | BECKER | |||
| BMW | PROFESSIONAL RDS | BECKER | SAB80C537-N | 24LC02 smd | TDA7375 x 2 |
| BMW | PROFESSIONAL RDS | BECKER | SAB80C537-N | 24LC02 smd | |
| BMW | PU-9263 bike | CLARION | |||
| BMW | PN-9203 bike | CLARION | 051-0794-10 | ||
| BMW | REVERSE wide | BECKER | |||
| BMW | REVERSE 22DC595/23 | PHILIPS | 24C16 smd | ||
| BMW | REVERSE 22DC595/23F wide | PHILIPS | P83CE560EFB041 | 24C16 smd | TDA7375 |
| BMW | REVERSE 22DC596/60 | PHILIPS | P87CE560EFB/01 | 24C16 smd | TDA7375B |
| BMW | REVERSE C21 BP3835 | BLAUPUNKT | 47C446AF-P827 (8925900008) | 93C46 | TDA2005 x 2 |
| BMW | REVERSE C23 ZIS BP8266 | BLAUPUNKT | MC68HC05B16 (8609500330) | TDA7350 x 2 | |
| BMW | REVERSE RDS wide | BECKER | SAB80C537-N | 24LC02B smd | TDA7375 x 2 |
| BMW | REVERSE RDS wide | BECKER | SAB80C537-N | 24LC02B smd | |
| BMW | REVERSE RDS C22 BP3836 | BLAUPUNKT | MC68HC05B16 (8925901452 or 901009) | TDA2005 x 2 | |
| BMW | REVERSE RDS C22 BP4836 | BLAUPUNKT | MC68HC05B16 (ZC86534CFN 8925901452) | TDA7350 x 2 | |
| BMW | REVERSE RDS C52 BP6260 | BLAUPUNKT | MC68HC705B16 or 05B16 (8925901851) | TDA7372B | |
| BMW | REVERSE RDS C52 BP6262 | BLAUPUNKT | MC68HC05B16 (ZC99308CFN 8925901911) SEC | TDA7350 x 2 | |
| BMW | TRAFFIC PRO | BECKER | SAFC161JC32RF 1358.111 | 24LC04 smd | TDA8569Q |
BMW Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.
BMW Car radio wiring diagrams. car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.
BMW auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation. How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.
Source: https://www.tehnomagazin.com/Auto-radio-car-connector/BMW-Car-Radio-Wiring-Connector.htm
Posted by: charlinebernoe0193091.blogspot.com
Post a Comment for "2003 Bmw X5 Wiring Diagram"
